What Is ODN in Telecom?

ODN stands for Optical Distribution Network. In a telecom network, it is the passive fiber infrastructure that connects the Optical Line Terminal (OLT) to the Optical Network Unit (ONU) or Optical Network Terminal (ONT). It carries and distributes optical signals without requiring powered electronic equipment along the fiber path.

ODN is a fundamental part of PON (Passive Optical Network) and is widely used in FTTH and other FTTx deployments. Although active equipment such as OLTs and ONTs often receives more attention, the quality and design of the ODN have a direct impact on network performance, installation efficiency, and long-term maintenance.

How Does an ODN Work?

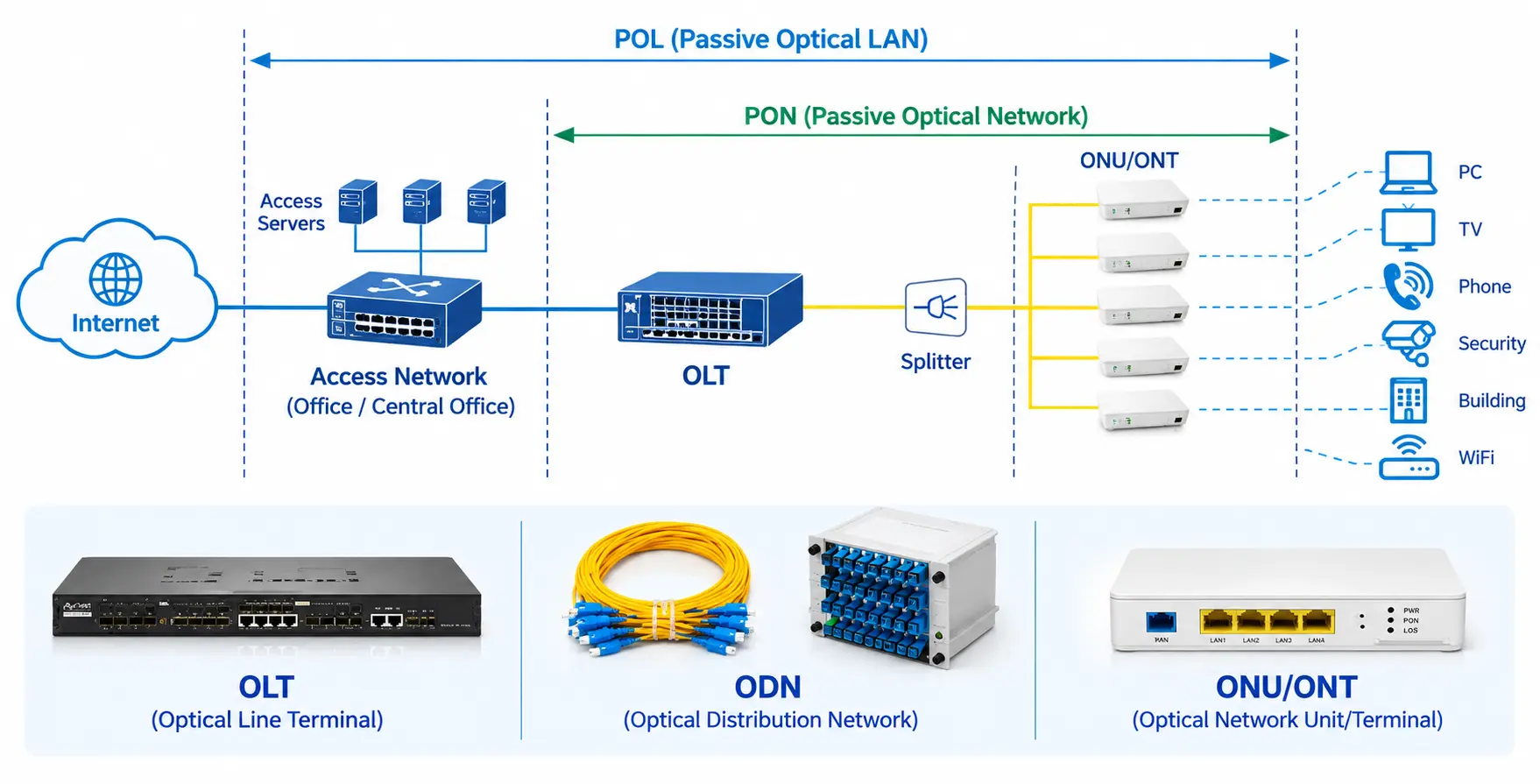

A simple ODN provides the physical path between the service provider and multiple customers. With a typical PON structure, a signal from the OLT can be delivered to several subscribers via an optical splitter.

The simplest way to represent a FTTH topology can be written like that:

OLT → Feeder Fiber → Distribution Point → Optical Splitter → Distribution Fiber → Drop Cable → ONT/ONU

This example shows that the ODN itself does not process any data like an active network device. It only provides the physical path needed for the transmission, splitting, connecting, and protecting optical signals.

For example, an optical splitter is capable of dividing one incoming optical signal to multiple output fibers. Depending on the particular network, typical configurations of a splitter include 1:8, 1:16, 1:32, or 1:64. But increasing the number of splits leads to an increase in optical loss, so this fact should be considered while choosing the right optical power budget.

Main Components of an ODN

ODN is not just one device. It is a combination of various passive optical devices.

1. Fiber Optic Cable

The cable provides a path for optical signals. In the context of a FTTH network, a cable is divided into feeder, distribution, and drop sections.

The feeder section usually connects the central office to a distribution area. Distribution cables extend the network closer to local access points, while the drop cable provides a final connection to the building.

2. Optical Splitter

Optical splitter is one of the key components of an ODN in PON.

This component can split one optical signal to multiple output signals. This is required to allow a single OLT port to serve multiple users. PLC splitters are often used in ODNs due to their high optical uniformity.

It is important to choose the optical splitter carefully because its insertion loss will become a part of the optical loss budget.

3. Fiber Distribution Box

A fiber distribution box is used for fiber termination, splicing, splitting, and fiber management. It can be installed outdoors, in buildings, telecom room, and other places.

A properly designed box makes fiber management much easier for technicians without disturbing other fibers.

4. Splice Closures

Splice closures protect fiber splices from various conditions including moisture and dust.

Splice closures are especially important in ODNs which are deployed outdoors because cables can be installed underground, on poles, etc.

5. Connectors, Patch Cords, and Pigtails

Connectors provide a possibility to disconnect and reconnect a fiber easily. Patch cords and pigtails are used to make connections to devices and manage fibers.

Despite the fact that these components seem small, each additional splice and connector leads to additional optical loss. So from the engineering perspective, it is important to avoid unnecessary connectors as much as possible.

ODN Structure in FTTH Network

Practical ODN can be usually explained by several network sections:

Different companies use different names and can split sections differently, but the idea remains the same. ZTE, for example, uses three sections (feeder, distribution, and drop) in FTTH ODN architecture and uses such components as optical distribution frames, fiber cables, splice closures, splitters, distribution boxes, and connectors.

Why Is ODN Important in Telecom?

Although ODN is passive, its design can significantly influence the performance of an access network.

Good ODN should provide the following:

• Sufficient optical power margin
• Fiber protection
• Effective fiber management
• Installation and maintenance convenience
• Proper capacity for expansion
• Reasonable deployment and operating cost

One of the often forgotten aspects is that ODN is hard to change after deployment. Replacement of OLT is usually easy comparing to the reconstruction of the buried cables, distribution points, and subscriber drop connections.

That is why I would recommend treating ODN planning as a long-term infrastructure decision instead of a selection of fiber optic products. Consideration of such issues as cable capacity, splitter location, extra ports, routing plan, maintenance access should be performed prior to the construction.

ODN vs. OLT and ONT

It can be useful to distinguish ODN from other components of a PON.

OLT is an active device that resides on the service provider side. It controls communication with multiple ONUs or ONTs.

ODN is the passive physical network between OLT and distributed equipment (ONU or ONT). ODN contains fiber, splitters, connectors, closures, distribution boxes, and other passive components.

ONU or ONT resides at the endpoint of distribution and provides the interface between optical access network and customer services.

These three devices form the basic architecture of PON.

ODN in Modern Fiber Networks

ODN technologies are important for today’s telecom operators who expand FTTH, FTTB, and other FTTx networks. Technologies like GPON and XGS-PON can use the same distribution concept, but requirements to optical loss, capacity, and planning can be different.

With broadband networks becoming faster, the importance of ODN increases. Passive network can be in operation for decades, while active equipment can be upgraded several times during this period.

So ODN is the physical base for PON network that distributes optical connectivity from the central office to multiple users. This is why understanding of its components, structure, and optical budget is important for any fiber network engineer.
