What Is Fiber Optic Cable?

A fiber optic cable is a communication cable that uses thin strands of glass or plastic fiber to transmit data as pulses of light. Unlike traditional copper cables, fiber optic cables transmit information through light rather than electrical signals. This allows them to provide high bandwidth, low signal loss, and reliable long-distance communication.

Fiber optic cables are now widely used in telecommunications, broadband networks, data centers, enterprise networks, and other applications where fast and stable data transmission is important.

How Does a Fiber Optic Cable Work?

A fiber optic cable transmits data through optical fibers inside the cable. The basic transmission process is relatively simple.

First, an optical transmitter converts electrical data into light signals. These light signals enter the fiber core and travel along the fiber. At the receiving end, an optical receiver converts the light signals back into electrical data.

The fiber itself consists mainly of three layers:

• Core: The central part that carries the light signal.
• Cladding: A surrounding layer with a lower refractive index that keeps light inside the core through total internal reflection.
• Coating: A protective layer that helps protect the glass fiber from moisture, bending, and mechanical damage.

The optical fiber is then combined with strength members, protective materials, and an outer jacket to form a complete fiber optic cable.

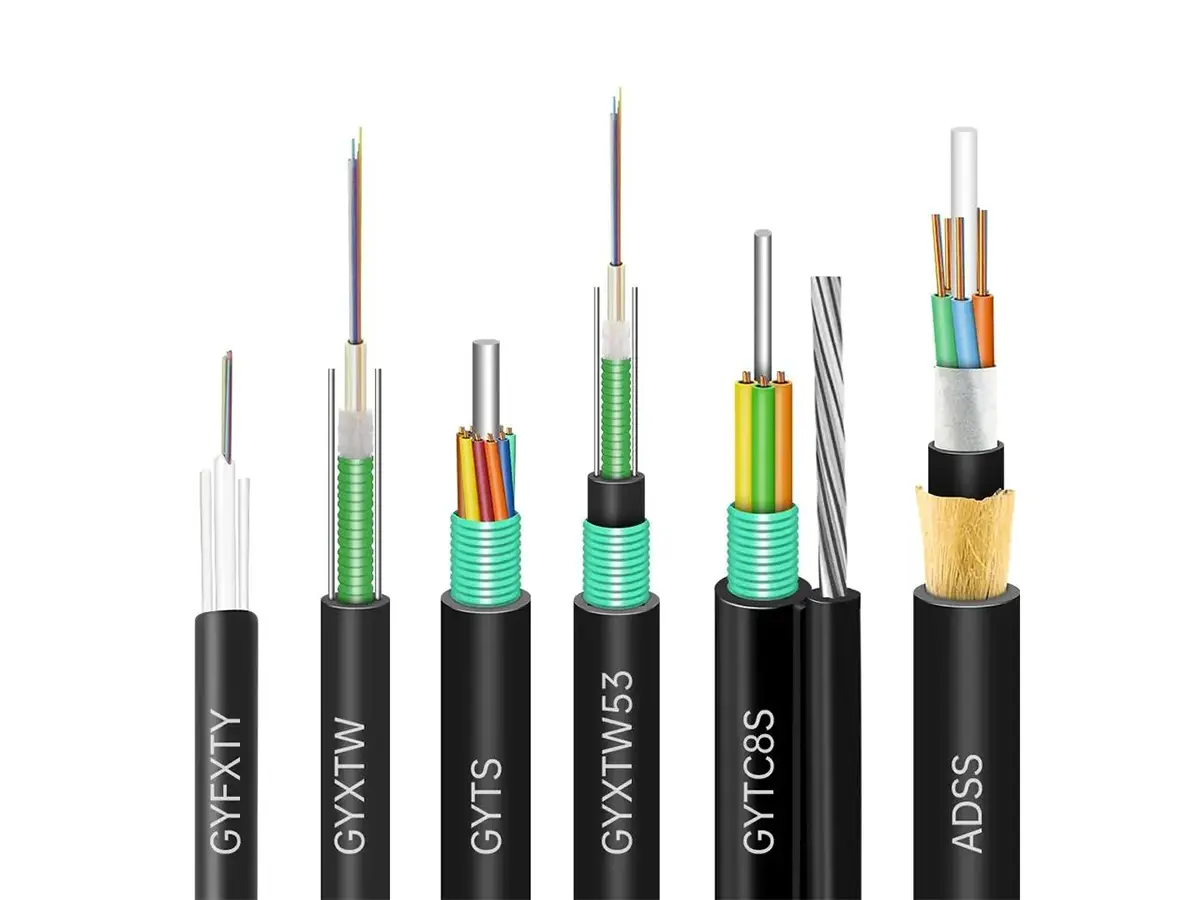

What Are the Main Types of Fiber Optic Cable?

Fiber optic cables can be classified in several ways, but the most common distinction is between single-mode and multimode fiber.

Single-Mode Fiber

Single-mode fiber has a very small core and allows light to travel primarily along a single path. It is designed for long-distance and high-bandwidth transmission.

Single-mode fiber is commonly used for:

• FTTH and FTTx networks
• Long-distance telecommunications
• Metropolitan area networks
• 5G and mobile communication infrastructure
• Data center interconnections
• Backbone networks

Because of its low attenuation and low dispersion, single-mode fiber can support communication over much longer distances than multimode fiber.

Multimode Fiber

Multimode fiber has a larger core, allowing multiple light paths to travel through the fiber at the same time. It is generally used for shorter-distance communication.

Typical applications include:

• Data centers
• Enterprise networks
• Server rooms
• Campus networks
• Building communication systems

Multimode fiber can be cost-effective for short-distance applications, especially where the transmission distance is limited.

What Are the Advantages of Fiber Optic Cable?

Fiber optic technology has several advantages over conventional copper communication cables.

High Bandwidth

Fiber optic cables can carry large amounts of data at high speeds. This makes them suitable for applications such as cloud services, video transmission, 5G networks, and data-intensive enterprise systems.

Long Transmission Distance

Fiber can transmit data over much longer distances with lower signal loss. This reduces the need for frequent signal regeneration equipment in many network designs.

Low Electromagnetic Interference

Because fiber optic cables transmit data using light rather than electrical current, they are not affected by electromagnetic interference in the same way as copper cables.

This is particularly useful in industrial environments, power facilities, transportation systems, and other areas with significant electrical interference.

Lightweight and Compact

Optical fiber is much thinner and lighter than many copper cables with comparable transmission capacity. This can make installation easier when large numbers of communication lines are required.

Improved Network Security

Fiber optic cables do not radiate electromagnetic signals like electrical conductors. Intercepting an optical signal generally requires physical access to the fiber, which can make unauthorized interception more difficult.

Where Are Fiber Optic Cables Used?

Fiber optic cables form the backbone of many modern communication networks. Common applications include:

1. FTTx Networks
   Fiber is widely used in FTTH, FTTB, FTTC, and other access network architectures to deliver broadband services.
2. Telecommunication Networks
   Fiber connects central offices, communication sites, mobile base stations, and backbone networks.
3. Data Centers
   High-speed fiber connections are used between servers, switches, storage systems, and network equipment.
4. Industrial Communication
   Fiber can provide reliable communication in environments where electromagnetic interference or long transmission distances are concerns.
5. Transportation Networks
   Railways, highways, airports, and intelligent transportation systems use fiber networks for communication, monitoring, and control.

What Should You Consider When Choosing Fiber Optic Cable?

Choosing the right cable depends on the network environment and transmission requirements. Important factors include:

• Single-mode or multimode fiber
• Required transmission distance
• Required bandwidth and data rate
• Indoor or outdoor installation
• Number of fiber cores
• Cable construction and protection
• Bending requirements
• Environmental conditions
• Connector and termination type

For outdoor installations, additional protection against moisture, temperature changes, mechanical stress, and other environmental factors may be necessary. For indoor applications, cable size, flexibility, fire performance, and installation space may become more important.

From our experience, selecting a fiber optic cable should not be based on transmission speed alone. The installation environment and long-term maintenance requirements are equally important. A cable that performs well in a controlled indoor environment may not be suitable for an exposed outdoor network.

Fiber Optic Cable and Modern Communication Networks

As broadband, cloud computing, 5G, and data-intensive applications continue to expand, fiber optic infrastructure remains an important part of modern communication networks. Fiber provides the transmission capacity and reliability needed for both access networks and high-speed backbone infrastructure.

For FTTx deployments, fiber optic cable also works together with other optical distribution network components, including fiber optic patch cords, pigtails, PLC splitters, fiber distribution boxes, and fiber optic accessories.

Conclusion

Fiber optic cable is a communication cable that uses optical fibers to transmit data through light. Its high bandwidth, long transmission distance, low signal loss, and resistance to electromagnetic interference make it suitable for a wide range of communication applications.

The right cable depends on factors such as fiber type, transmission distance, installation environment, and network architecture. For telecom operators, network contractors, and system integrators, selecting the appropriate fiber optic cable is an important step toward building a reliable communication network.

Huijue Network supplies fiber optic cables and related FTTx products for different network applications. If you are looking for fiber optic cable for a telecom, FTTx, data center, or other communication project, you can contact us for product information and project-specific recommendations.
