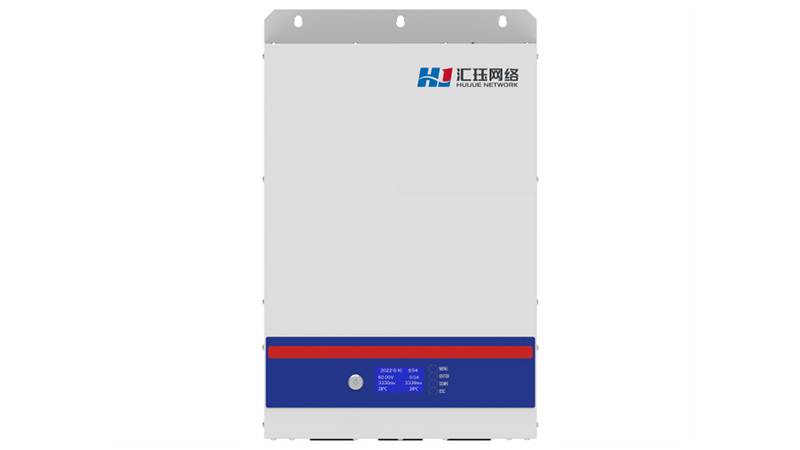

Home energy storage system (wall-mounted)

Energy Storage

Home Products Energy Storage

Request a Quote

Applications

lt is suitable for household energy storage power supply for small-capacity access network equipment, household electrical equipment, commercial power backup equipment, and household backup power equipment.

Advantages

It had the function ofcentral control，batterymaintenance and management to meet the requirements of no one on duty: it could be monitored in real time through the mobile APP.

	product name	Home energy storage system (wall-mounted)
serial number	parameter item	Specification Description
4	battery model	HJD-HSSL-WM01	HJD-HSSL-WM02
5	Battery Type	Lithium iron phosphate battery
6	battery capacity	100Ah	200Ah
7	Rated voltage	48Vdc
8	voltage range	40Vdc~54Vdc
9	Rated charge and discharge current	50A	100A
10	Maximum charge and discharge current	100A	200A
11	cycle life	≥2000 times@80%DOD@25℃
12	way of communication	RS485/CAN
13	display screen	LCD/LED display (optional)
14	Module size (WDH)/(for reference)	550220650mm	550220750mm
15	Module weight/(for reference)	50kg	80kg
16	degree of protection	IP55
17	Relative humidity	10%~90%
18	Operating temperature	0℃~50℃, -10℃ ~50℃
19	installation method	Wall-mounted
20	Fastener	Standard accessories
21	Product Certification/Certificate	UN38.3/CE/UL1973

Why choose us

Adhere to customer-centric, providing innovation for major customers
R&D and management team with rich experience and good execution capabilities
We have 20 + years of manufacturing experience
We have 300+ Patent certificates
Provide intelligent, safe and reliable network communication and solutions
