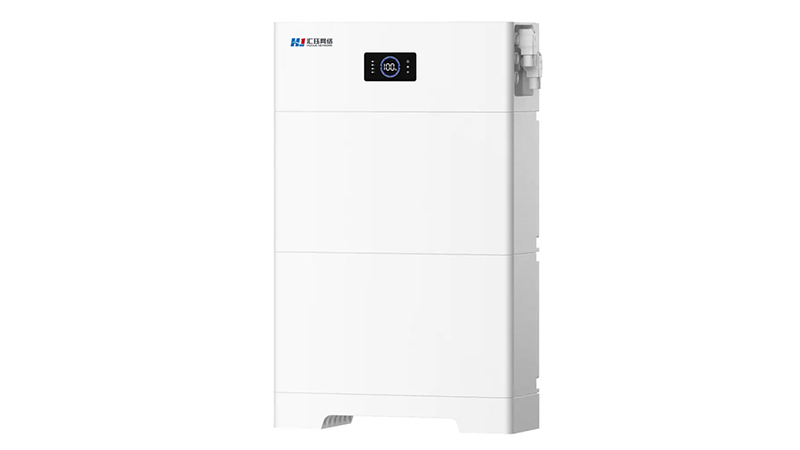

Home energy storage system (stacked)

Energy Storage

Home Products Energy Storage

Request a Quote

Applications

It is suitable for household energy storage powersupply for small-capacity access network equipment, household electricalequipmentcommercialoowerbackupequipmentand household backup power equipment.

Advantages

It had the function ofcentral control，batterymaintenance and management to meet the requirements of no one on duty: it could be monitored in real time through the mobile APP.

	product name	Home energy storage system (stacked)
serial number	parameter item	Specification Description
3	battery model	HJD-HSSH-SM01	HJD-HSSH-SM02	HJD-HSSH-SM03
4	Battery Type	Lithium iron phosphate battery
5	battery capacity	200Ah	300Ah	400Ah
6	Rated voltage	96Vdc	144Vdc	192Vdc
7	voltage range	40Vdc~54Vdc	120Vdc~162Vdc	160Vdc~216Vdc
8	Parallel quantity	2	3	4
9	Rated charge and discharge current	50A	50A	50A
10	Maximum charge and discharge current	100A	100A	100A
11	cycle life	≥2000 times@80%DOD@25℃
12	way of communication	RS485/CAN
13	display screen	LCD/LED display (optional)
14	Module size (WDH)/(for reference)	600500550mm	600500750mm	600500950mm
15	Module weight/(for reference)	75kg	95kg	115kg
16	degree of protection	IP55
17	Relative humidity	10%~90%
18	Operating temperature	0℃~50℃, -10℃ ~50℃
19	installation method	stacked
20	Fastener	Standard Fixed/Mobile Base
21	Product Certification/Certificate	UN38.3/CE/UL1973
