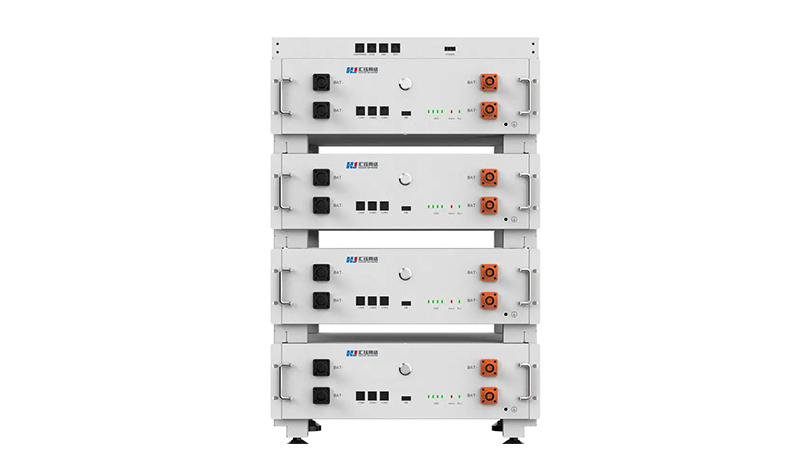

Home energy storage system (rack type)

Energy Storage

Home Products Energy Storage

Request a Quote

Applications

It is suitable for household energy storage powersupply for small-capacity access network equipment, household electricalequipmentcommercialoowerbackupequipmentand household backup power equipment.

Advantages

It had the function ofcentral control，batterymaintenance and management to meet the requirements of no one on duty: it could be monitored in real time through the mobile APP.

	product name	Home energy storage system (rack type)
serial number	parameter item	Specification Description
1	battery model	HJD-HSSL-RM01	HJD-HSSL-RM02	HJD-HSSL-RM03	HJD-HSSL-RM04
2	Battery Type	Lithium iron phosphate battery
3	battery capacity	100Ah	200Ah	300Ah	400Ah
4	Rated voltage	48Vdc
5	voltage range	40Vdc~54Vdc
6	Parallel quantity	1	2	3	4
7	Rated charge and discharge current	50A	100A	100A	100A
8	Maximum charge and discharge current	100A	200A	200A	200A
9	cycle life	≥2000 times@80%DOD@25℃
10	way of communication	RS485/CAN
11	display screen	LCD/LED display (optional)
12	Module size (WDH)/(for reference)	Single module: 482420133mm
13	Module weight/(for reference)	Single module: 40kg
14	degree of protection	IP20
15	Relative humidity	10%~90%
16	Operating temperature	0℃~50℃, -10℃ ~50℃
17	installation method	rack mount
18	Fastener	Standard 19-inch battery cabinet/battery rack, which can be customized according to the actual situation
19	Product Certification/Certificate	UN38.3/CE/UL1973

Why choose us

Adhere to customer-centric, providing innovation for major customers
R&D and management team with rich experience and good execution capabilities
We have 20 + years of manufacturing experience
We have 300+ Patent certificates
Provide intelligent, safe and reliable network communication and solutions
