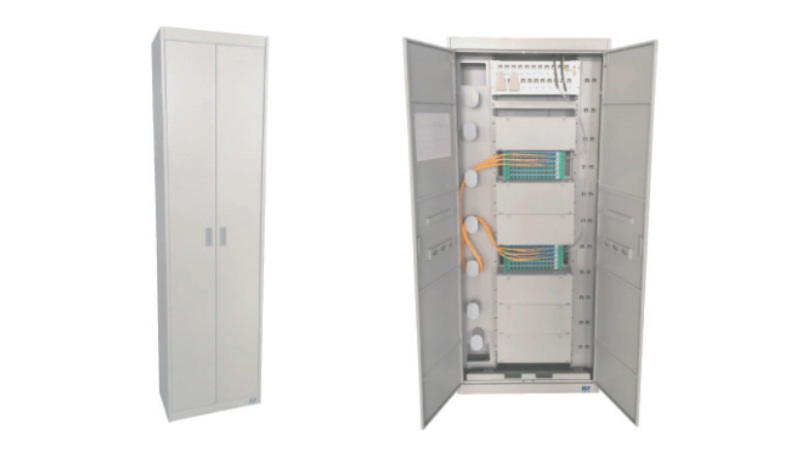

FTTx-ODF_Line side 576 core

ODN

Standard 19”& ETSI installations
Enclosed and detachable structure, front access and operation, easy to be floor standing against the wall, and space saving;
The splice and storage of the fiber cables and pigtails, and flexible connection can be completed in one same ODF unit;
12 core integrated splice tray could be installed with different types of adaptors like FC, SC and ST;
Reliable cable inlet, fixing, and grounding mechanism;
Multi functions of resources management, scheduling transmission routing and protective splice.

Request a Quote

Overview

Fiber Optic Distribution Frame (or shortened as ODF), is used to form and distribute the local backbone optical cable in the optical fiber communication system, to fit the requirements of the connection, distribution and dispatch of the optical fiber line easily.

Environmental conditions

Working temperature: -25℃ -+40℃

Storage temperature: -25℃～ +55℃

Working relative humidity: not more than 85% （at +30℃）

Storage relative humidity: ≤ 90％～ 96％（40℃ ±2℃）

Atmospheric pressure: 70 ～ 106kpa

Features

Standard 19”& ETSI installations

Enclosed and detachable structure, front access and operation, easy to be floor standing against the wall, and space saving;

The splice and storage of the fiber cables and pigtails, and flexible connection can be completed in one same ODF unit; 12 core integrated splice tray could be installed with different types of adaptors like FC, SC and ST;

Reliable cable inlet, fixing, and grounding mechanism;

Multi functions of resources management, scheduling transmission routing and protective splice.
