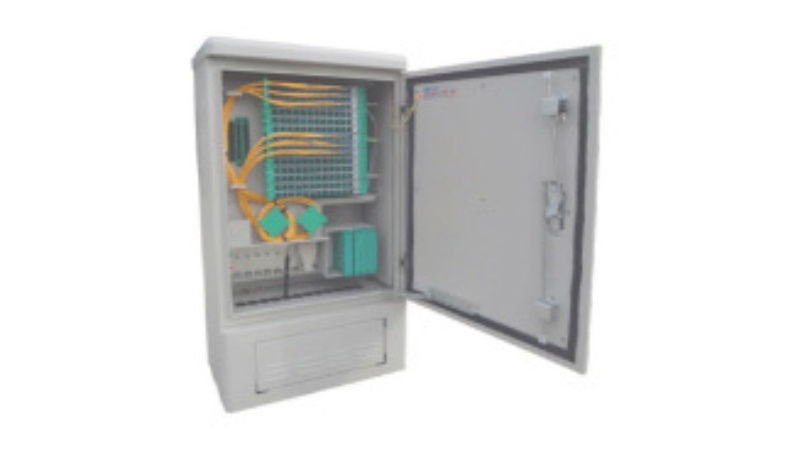

Fiber Cross Connect Cabinet
Request a Quote .png)
Overview
Fiber Cross Connect Cabinet (FCCC) is for providing the distribution for optical fiber cables including direct connection and cross connection, for the use of FTTH network.
Features
The cabinet body is made from high strength stainless steel plate,
strong, anti-aging, anti-corrosion, and can resist accidental or malignant damage.
The cabinet adopts double-layer structure, with high-performance
heat insulation material filled in the middle, which has good heat insulation effect and can effectively prevent the condensation of water vapor in the cabinet.
The cabinet door adopts special sealing material, waterproof door lock and three-point door pin lock, which is safe, reliable and has good sealing performance.
12-core integrated module.
FC and SC adapters can be installed.
With reliable fiber cable fixing and grounding protection devices.
Applicable for single core and ribbon optical cable.
Environmental conditions
Working temperature: -40℃ ~+60℃
Storage temperature: -40℃ ~+60℃
Working relative humidity: not more than 95% （at +40℃）
Atmospheric pressure: 70 ～ 106kpa
Technical parameters
Connector attenuation (insertion, interchange, repetition) ≤ 0.3dB
Echo Loss ≥ 50dB
Insertion durability lifespan > 1000 times
Insulation Resistance of High Voltage Protective Grounding and the
cabinet > 1000M/500V (DC)
High-voltage protective grounding and the cabinet withstand
voltage > 3000V (DC) / 1 min without breakdown and arc
Configuration
Specification
