Overview

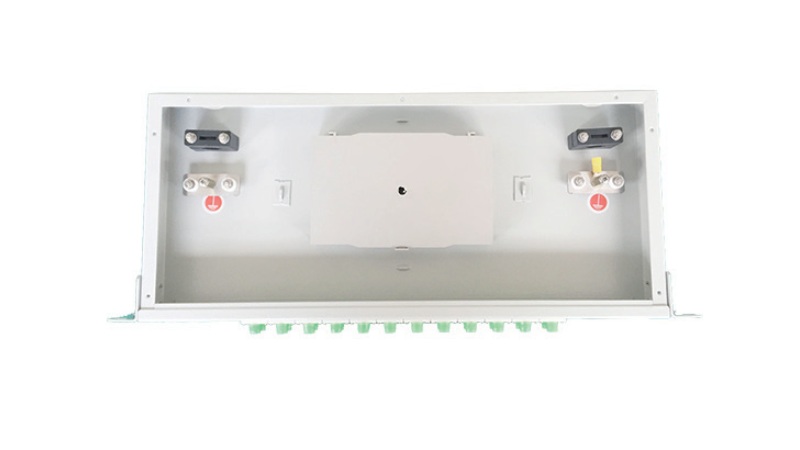

Fiber termination box (shortened as FTB or OTB), is mainly used for the terminal fixing, the protection of the splice joint between the fibers and the pigtails, and storage of the spare fibers.
According to the applications, it can be classified into the Rack type and book type, which the former is mounted inside the 19 inch rack, while the later could be used directly, such as outdoor in the building.
Environmental conditions
Working temperature: -25℃ -+40℃
Storage temperature: -25℃～ +55℃
Working relative humidity: not more than 85% （at +30℃）
Storage relative humidity: ≤ 90％～ 96％（40℃ ±2℃）
Atmospheric pressure: 70 ～ 106kpa
Features
Applicable for standard 19 inch rack installation;
High quality grade cold rolled steel with powder coating;
SC/FC adaptors and pigtails could be installed, and max. capacity is 36 cores;
Reliable fiber cable fixing, protection of stripped fiber cables and grounding;
Applicable for fiber cables dia.Ф8~18mm;
