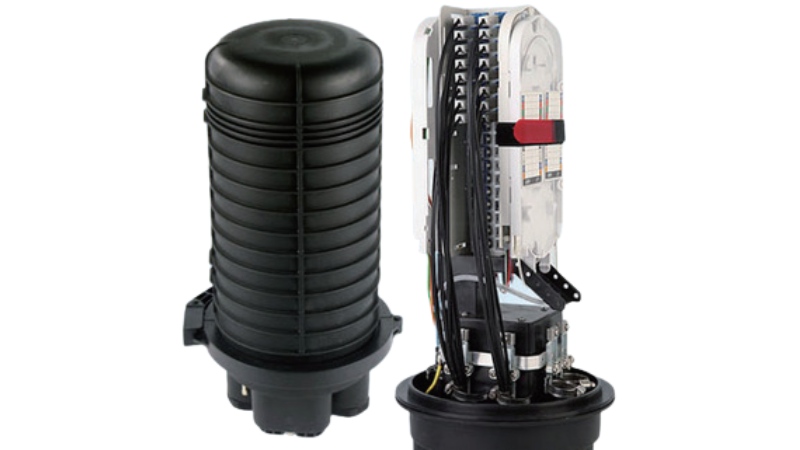

Fiber Optic Splice Closure
Request a Quote .png)
Overview
Fiber Optic Splice Closure (FOSC), is for the protection of the fiber splice joint between two or more cables, for direct or branch connection, to prevent the aging caused by the heat, cold, light, oxygen and microorganisms in nature. With the excellent mechanical strength, the robust shell, and the main structures could withstand the worst environmental changes, meanwhile, the vibration, impact, cable stretching and twist could be protected. It could be used for aerial, pipe-lined, direct buried installations.
Environmental conditions
Working temperature: -20℃ -+60℃
Storage temperature: -40℃～ +65℃
Working relative humidity: not more than 80% （at +30℃）
Storage relative humidity: not more than 80%≤ 90％～ 96％（40℃ ±2℃）
Atmospheric pressure: 70 ～ 106kpa
Features
5 cable ports for fiber cablesФ8~22mm;
Max. capacity (single fibers): 120fibers (24*5);
Cable ports mechanical Sealing: good sealing performance, IP68;
Small ports are spinning mechanical sealing, while the oval port is sealed by direct pressure mechanical seal;
Could accommodate 1pc 1:32 or 2:32 mini splitters, and max. 34pcs SC adaptors;
Could be used for pole/wall-mounting and pipelined installations;

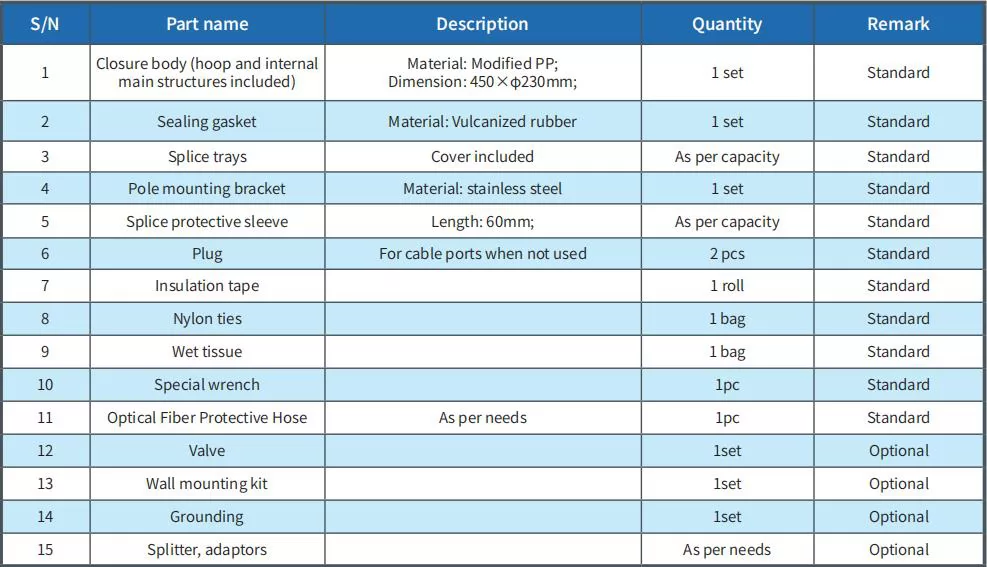

Configuration
Specification
