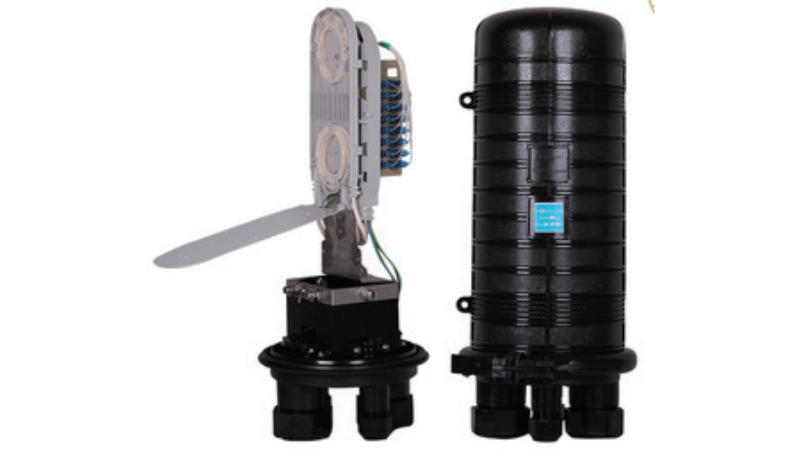

Fiber Optic Splice Closure
Request a Quote .png)
Overview
Fiber Optic Splice Closure (FOSC), is for the protection of the fiber splice joint between two or more cables, for direct or branch connection, to prevent the aging caused by the heat, cold, light, oxygen and microorganisms in nature. With the excellent mechanical strength, the robust shell, and the main structures could withstand the worst environmental changes, meanwhile, the vibration, impact, cable stretching and twist could be protected. It could be used for aerial, pipe-lined, direct buried installations.
Environmental conditions
Working temperature: -20℃ -+60℃
Storage temperature: -40℃～ +65℃
Working relative humidity: not more than 80% （at +30℃）
Storage relative humidity: not more than 80%≤ 90％～ 96％（40℃ ±2℃）
Atmospheric pressure: 70 ～ 106kpa
Features
Small cable ports for fiber cablesФ8~21mm and big ports for fiber cablesФ8~40mm;
Max. capacity (single fibers): 48 fibers (24*2);
Cable ports heat shrink Sealing: good sealing performance, IP68;
Could accommodate 1pc 1:16 or 2pcs 1:8 PLC splitters, or 1pc box type splitter 1:16;

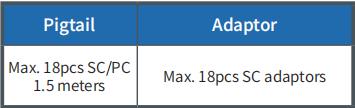

Could accommodate 18pcs SC adaptors (Other types can be customized), max 18pcs SC/PC 1.5 pigtails;
Various soft cable sealing accessories available and can be customized;
The splitters and pigtails could be pre-installed, and only need to splice the fibers, which could greatly save the operation time and improve work efficiency;

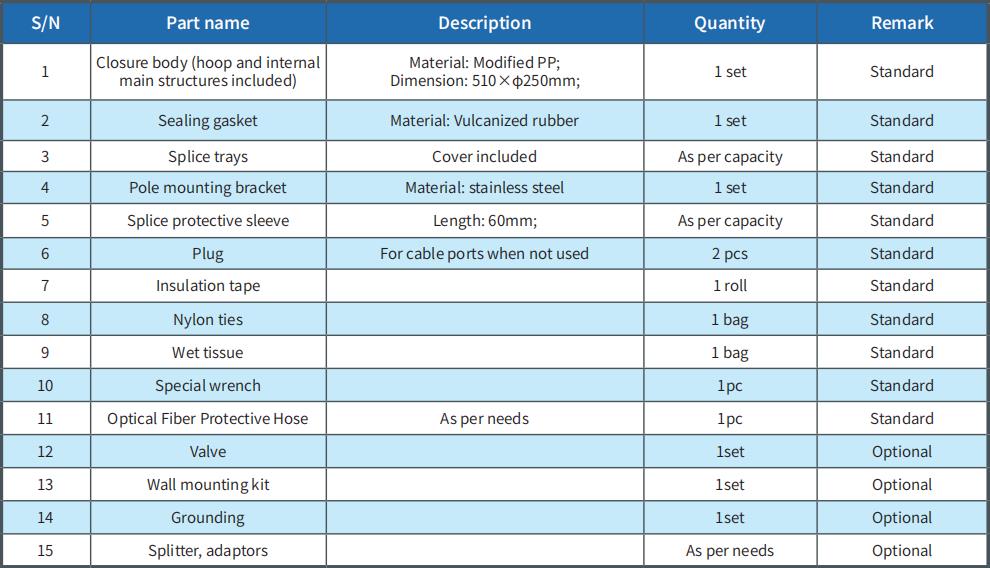

Configuration

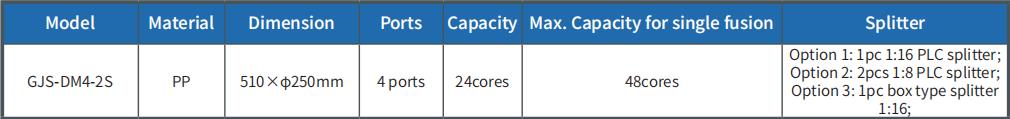

Specification
