Overview

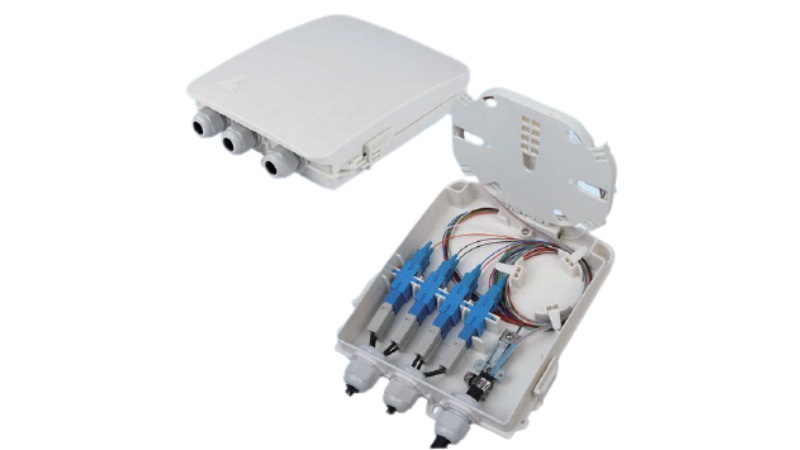

Fiber Optic Distribution Box (FODB) is used for the connection and distribution between the main fiber optic cable and the distribution fiber optic cable.
The applications could be outdoor, corridor in the building or indoor.
Environmental conditions
Working temperature: -25℃ -+40℃
Storage temperature: -25℃～ +55℃
Working relative humidity: not more than 85% （at +30℃）
Storage relative humidity: ≤ 90％～ 96％（40℃ ±2℃）
Atmospheric pressure: 70 ～ 106kpa
Features
FTTH application, universal for passive optical splitting, distribution and termination, practical patented;
The box adopts book design and unique sliding locking mechanism,compact size, multi- function and convenient to use;
Can be used for the distribution of the fiber cable belowФ12mm and the protective connection of the 8-shaped orΦ3 soft cables;
It can install 1:8SC or 1:16 LC mini optical splitter, meanwhile, can install SC duplex or LC 4core adapters;

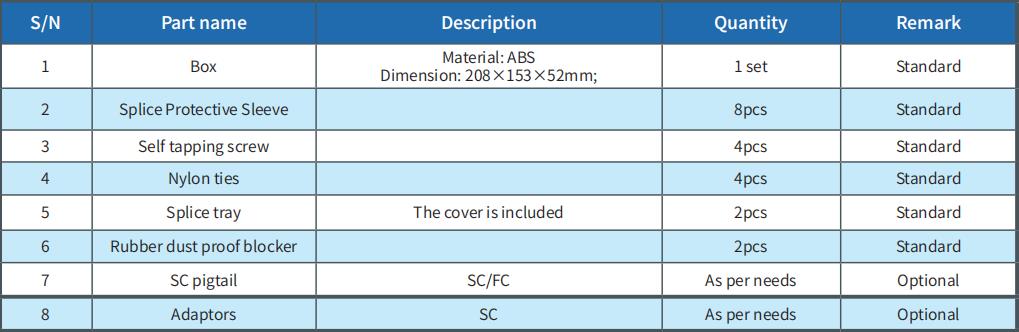

Configuration

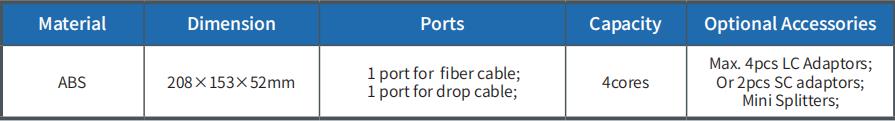

Specification
