Fiber Optic Distribution Box
Request a Quote .png)
Overview

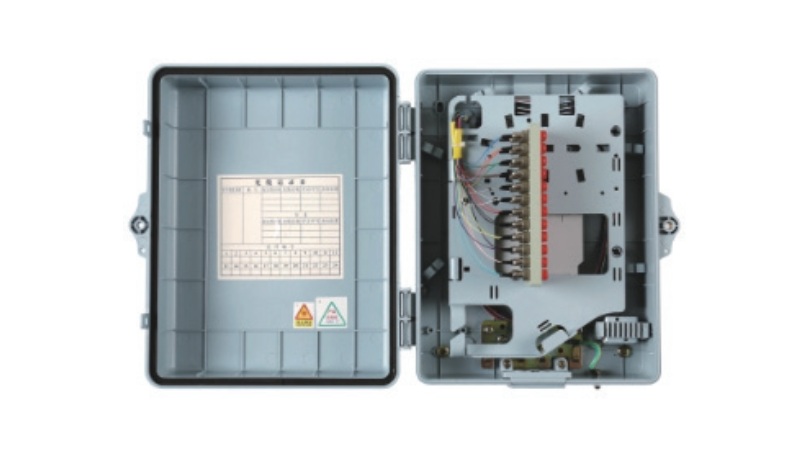

Fiber Optic Distribution Box (FODB) is used for the connection and distribution between the main fiber optic cable and the distribution fiber optic cable.
The applications could be outdoor, corridor in the building or indoor.
Environmental conditions
Working temperature: -25℃ -+40℃
Storage temperature: -25℃～ +55℃
Working relative humidity: not more than 85% （at +30℃）
Storage relative humidity: ≤ 90％～ 96％（40℃ ±2℃）
Atmospheric pressure: 70 ～ 106kpa
Features
It is suitable for terminal connection and distribution of single core and ribbon optical fibers.
Outdoor or corridor wall mounting or pole mounting, protection level: IP55;
Used for the connection and distribution between the indoor/outdoor fiber cables and exchange equipment pigtails;
SC, FC adapters and pigtails can be installed. The max. Capacity is 24cores.
Reliable cable fixing, protection of the stripped fibers and grounding;
Applicable for fiber cables dia. 8-18 optical cables.
Configuration
Specification
Why choose us
-
Adhere to customer-centric, providing innovation for major customers -
R&D and management team with rich experience and good execution capabilities
-
We have 20 + years of manufacturing experience
-
We have 300+ Patent certificates
-
Provide intelligent, safe and reliable network communication and solutions
