Description
Data Center & Fusion Module Data Center

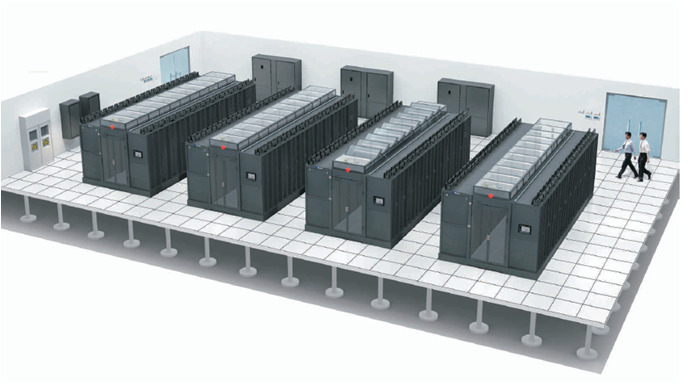

Micro-module data center integrates the server rack,cooling system,fire ighting,cabling,power distribution, monitoring, lighting and other systems in the traditional equipment room into an integrated solution,Play the advantages of modular design for fast, flexible deployment of data center systems.
| Name | Modular Data Center |
|---|---|
| Dimensions |

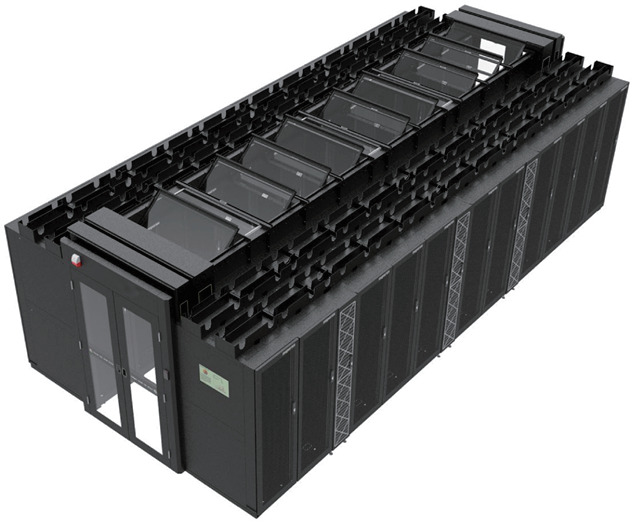

Single-row sealed cold / hot aisle (Lx Wx H): •Lx2400mmx2000mm, L<15m •Lx2300mmx2000mm, L<15m •Lx2400mmx2200mm, L<15m Double sealed cold / hot aisle (Lx Wx H): •Lx3600mmx2000mm, L<15m •Lx3400mmx2000mm, L<15m •Lx3600mmx2200mm, L<15m |
| Single cabinet quantity | Single row:2〜24 |
| Double row:6~48 | |
| Power input | 380/400/415Vac, 50/60Hz, 3Ph+N+PE |
| Single module IT power consumption |
Built-in UPS: 112kW External UPS: 310kW |
| Single cabinet power density | 21kW/Rack |
| Reliable grade |
Tier II or Tier III (which can extend to Tier IV) |
| Altitude | 0~4000m |
| Mounting method | Concrete floor mounted, or plinth mounted |
